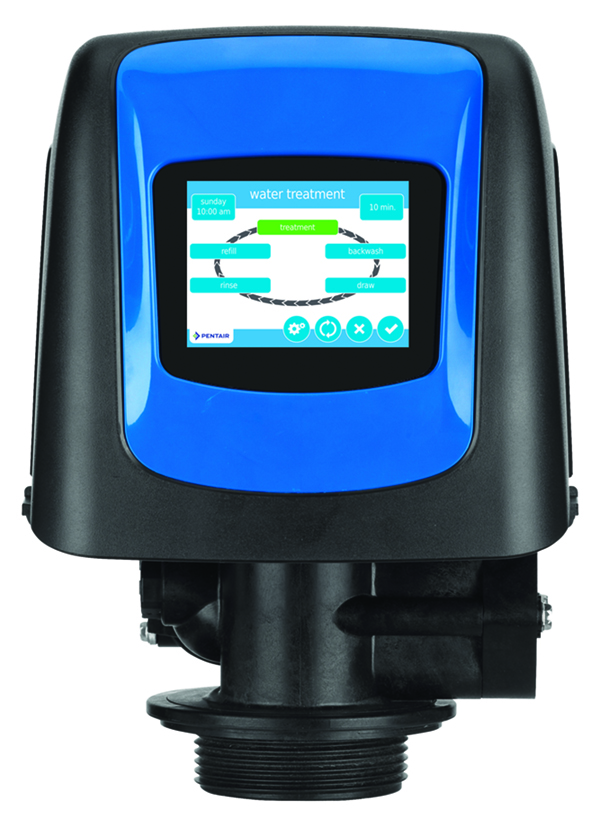

Our Onyx line of water softeners uses the Fleck XTR2 Controller – the first touchscreen control valve to hit the water industry. With its detailed screen descriptions, color LCD display, and familiar icons, the XTR2 controller brings ease of programming and a user-friendly experience to the table. Our Onyx systems come complete with an integrated bypass, brine tank with safety float and plumbing connectors sized to your needs.
This system can be built using the XTR2 controller on a control valve up to 1-1/4”.
Onyx Brochure: 5800_XTR2
Warranty: Warranty-Onyx
Mineral Tank Specs: Structural-Mineral-Tank-Specs
VALVE SPECIFICATIONS
Valve Material: Fiber-reinforced polymer
Inlet/Outlet: 0.75″or 1″
Cycles: 5
FLOW RATES (50 PSI INLET) – VALVE ALONE
Continuous: (15 psi drop) 21 GPM • 4,8 m3/h
Peak: (25 psi drop) 27 GPM • 6,1 m3/h
Cv: (flow at 1 psi drop) 5.4
Max. Backwash: (25 psi drop) 17 GPM • 3,9 m3/h
REGENERATION
Downflow/Upflow: Both
Adjustable Cycles: Yes
Time Available: 0-240 minutes per cycle
METER INFORMATION
Meter Accuracy: .25 – 15 GPM +/-5%
Meter Capacity Range (gal.): 1-99,999,999
